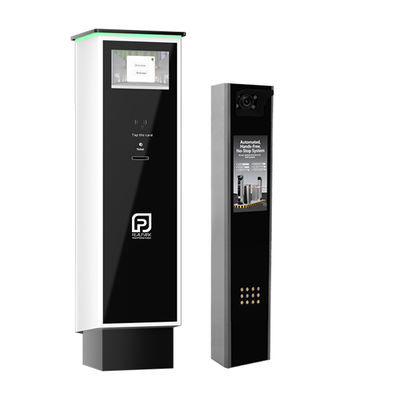

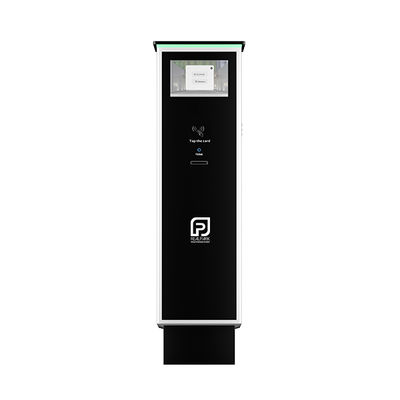

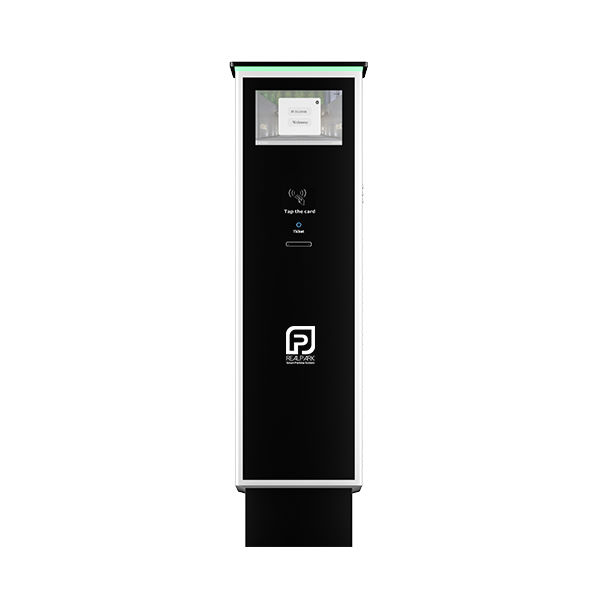

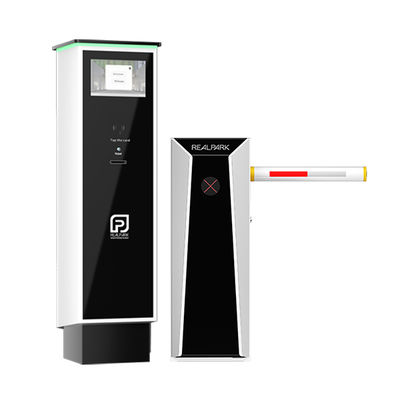

Smart Parking System with 10.1-inch LCD Display, NFC Reader & Thermal Printer
Advanced Parking Terminal: A 10.1-inch LCD touchscreen LPR parking system with NFC card reading and thermal ticket printing for seamless vehicle access control.
Parking Ticket Kiosk Specifications:
✅Display: 10.1-inch LCD touchscreen
✅NFC Reader: Supports contactless cards/payments
✅Printer: High-speed thermal ticket printer
✅Connectivity: Ethernet
✅Software: Customizable parking management system
✅Power Supply: 12V DC/POE supported
✅Operating Temperature: -20°C to 60°C
✅Languages: Multi-language support
✅SDK/API: Available for third-party integration
✔ Modular Design: Easy to install and upgrade.
✔ Durability: Industrial-grade components for 24/7 operation.
✔ Flexibility: Supports multiple payment methods (NFC, QR, cashless).
✔ Scalability: Compatible with smart LPR parking system.
✔ Global Compliance: Meets international parking standards.
Multi-language parking system Applications:
✅Shopping malls & office buildings
✅Airports & train stations
✅Residential communities
✅Smart city parking projects
✅Toll booths & paid parking zones
|
|
| Core Parameters | CPU: 4 Core, 1.8G, Cortex-A55 |
| Memory: Memory 2-8GB, | |
| Interface | Support TF, Optional, Max: 128G Supports 6 USB HOST, 1 USB OTG2 serial port for USB camera, and supports TTL optional RS232 serial port. 1 set of RS485. Supports external serial device modules (3G module, NFC module, printer, card reader, etc.) 1 set of I2C port //*TF card, supports up to 128GBD class extra large built-in speaker, 5W/8Ω *2 supports microphone |
| General Parameters | Power supply: input: AC100-240V, 50-60HZ, out put: DC12V 4A |
| Operating temperature range: -20℃ to +60℃. | |
| 1.5 mm steel housing (Anti-corrosion treated) | |
| Easy Access to internal components through front door equipped with a security lock. | |
| All components easily accessible. | |
| Customized side/front panel color | |
| Customized housing and side/front panel colors. | |
| Internal Components | 10.1-inch Color LCD screen |
| Thermal printer for the printing of parking tickets. | |
| QR code scanner for the reading of all types of parking tickets. | |
| Android control board. | |
| Thermostatically controlled cooling system with fan. | |
|
Power supply with isolation switch. |
|
Smart City Parking Key Features:
Real-time license plate recognition (LPR)
Touchscreen user interface
NFC/RFID card authentication
Auto-print parking tickets/receipts
Remote monitoring & management
Anti-tampering alerts
Multi-language & currency support
Data export/analytics
